Specifications

Basic information

Model No.:N16 Pro

Colour: Silver Grey

Material: Metal

Unit size:360*242*20 mm

Net weight: 1886g

Packing list:

Laptop*1

power adapter*1

user's manual *1

Mouse*1

Mouse Pad*1

CPU & Operation system

CPU:13th Intel® Core™ i7-13620H

Cores & Threads:10 Cores 16 Threads(6P4E)

CPU speed:Efficient-core Max Turbo Frequency:3.60GHz

Performance-core Max Turbo Frequency:4.90GHz

Lithography:Intel 7

Smart cache:24 MB Intel® Smart Cache

Operation system:Windows 11

Power consumption:35W-115W, default 45 W

Graphic card

Model No.:Intel® UHD Graphics

Graphics Max Dynamic Frequency:1.50 GHz

Display

Display size:16"

Display resolution:2560*1600

Display rate:16：10

Display type:QHD

Gamut:100% sRGB

Refresh rate:120Hz

Matte or glossy:Matte

View angle:170°(horizontal) / 170°(Vertical) (CR>10,typical)

Uni-body :No

Opening angle :135 degree

Brightness:400cd/㎡（typical）

Memory

Memory size:32G

Memory ports:SO-DIMM*2

Memory type:DDR4 2666Mhz

Max size:64GB

Hard disk

Default size&sype:1TB NVME

Default HDD speed/SSD speed:8Gbps

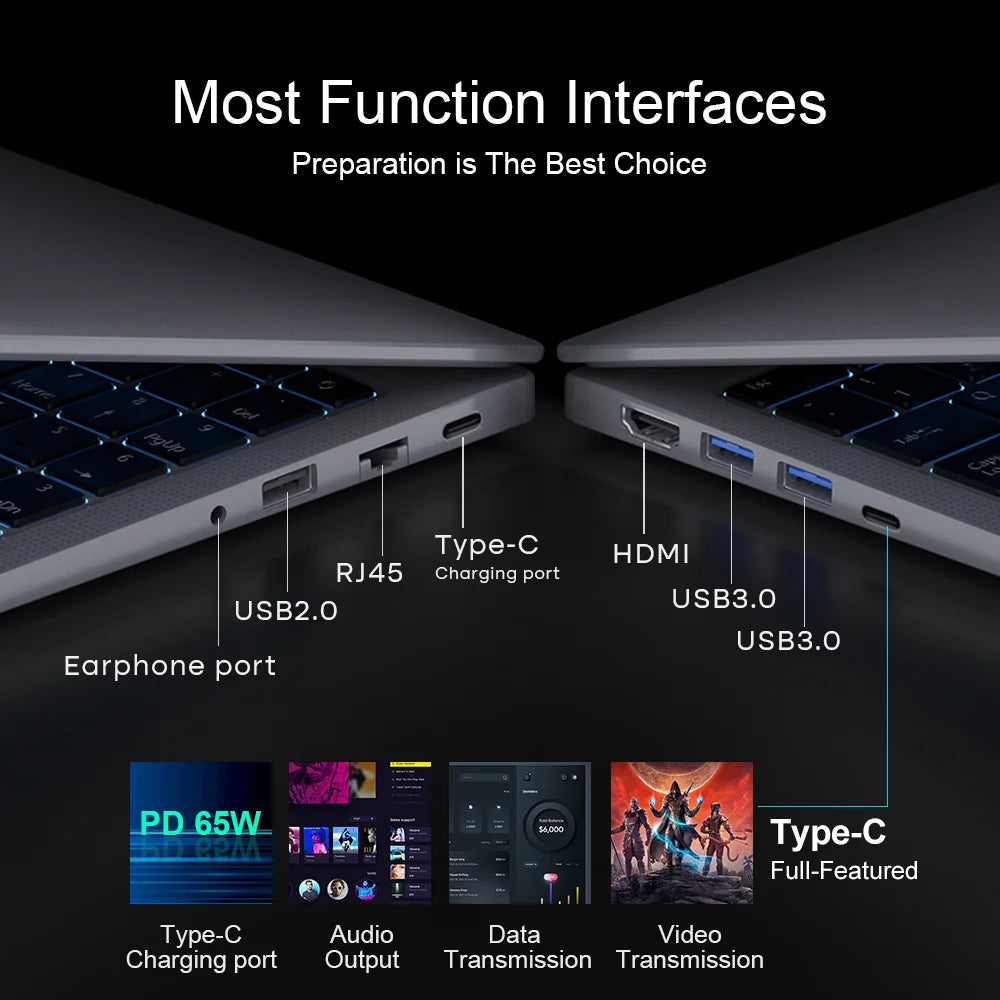

Ports

NVME m.2 2280*2

Extenal ports:Yes

Extenal ports type:NVME*1

Interface:NVME m.2 2280*1

Max size:4TB

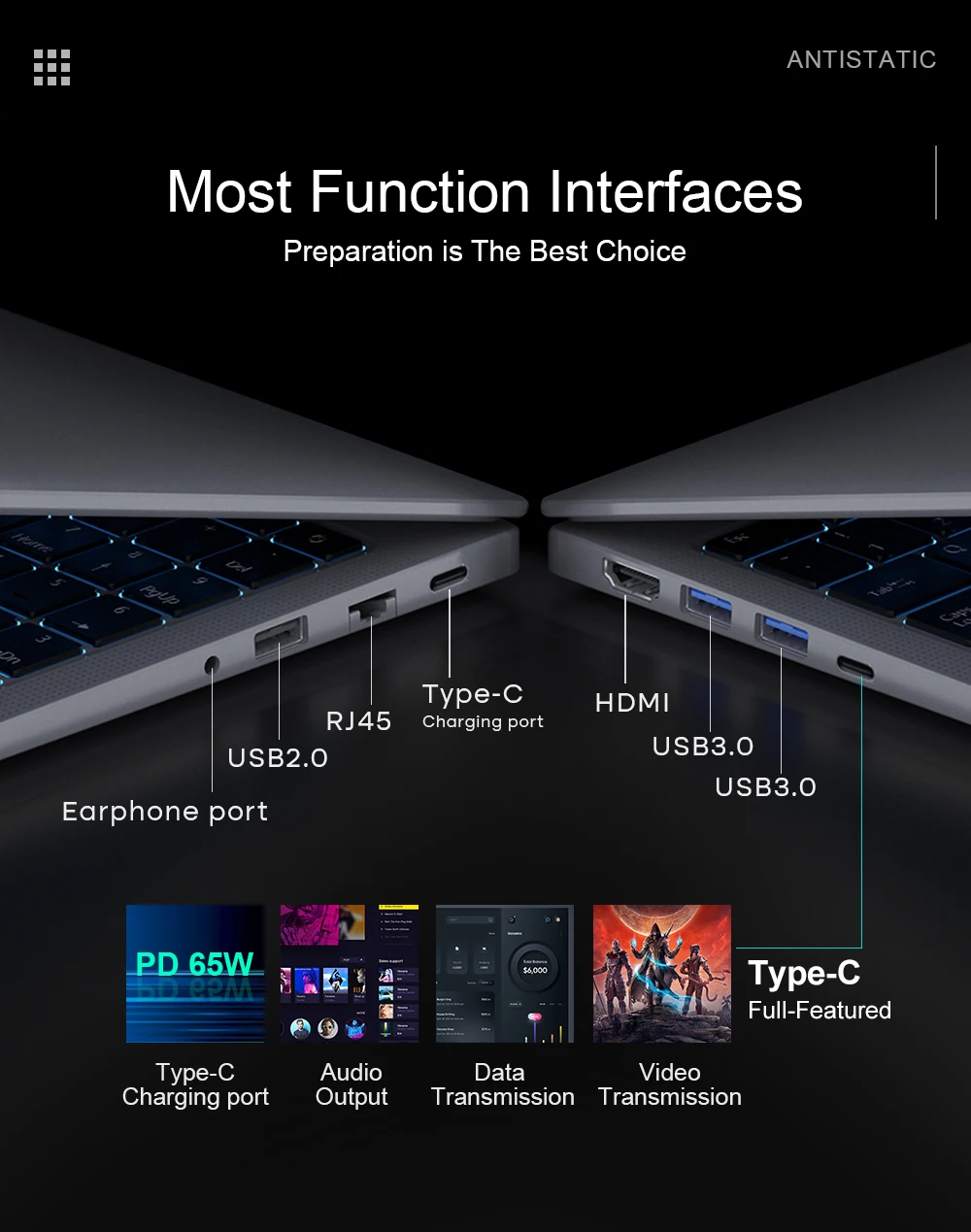

Connection ports:USB2.0:USB2.0*1

USB3.0:USB3.0*2

USB3.1:N/A

USB3.2:N/A

HDMI:HDMI*1

TYPE-C:TYPE-C*2,one full function,another charging only

Thunderbolt:N/A

Audio:Ø3.5mm *1

RJ45:RJ45*1

Charge port size:4.8mm/1.7mm

Communications

BT:BT5.0

LAN Supports 10/100/1000M sec

WIFI:WIFI6.0 IEEE 802.11ax

In-put devices

Keyboard US Keyboard

Keyboard light colour:White light backlit

Keyboard light software:N/A

Touch pad:Clickpad 125*85mm

Audio

Speaker:2 build-in speakers

Dolby support:N/A

Bass:Not support

Build-in microphone:Analog Microphone support

Power supply

Battery capacity:11.55V/5000mAh, 57.75Wh

Removeable or not:not removeable

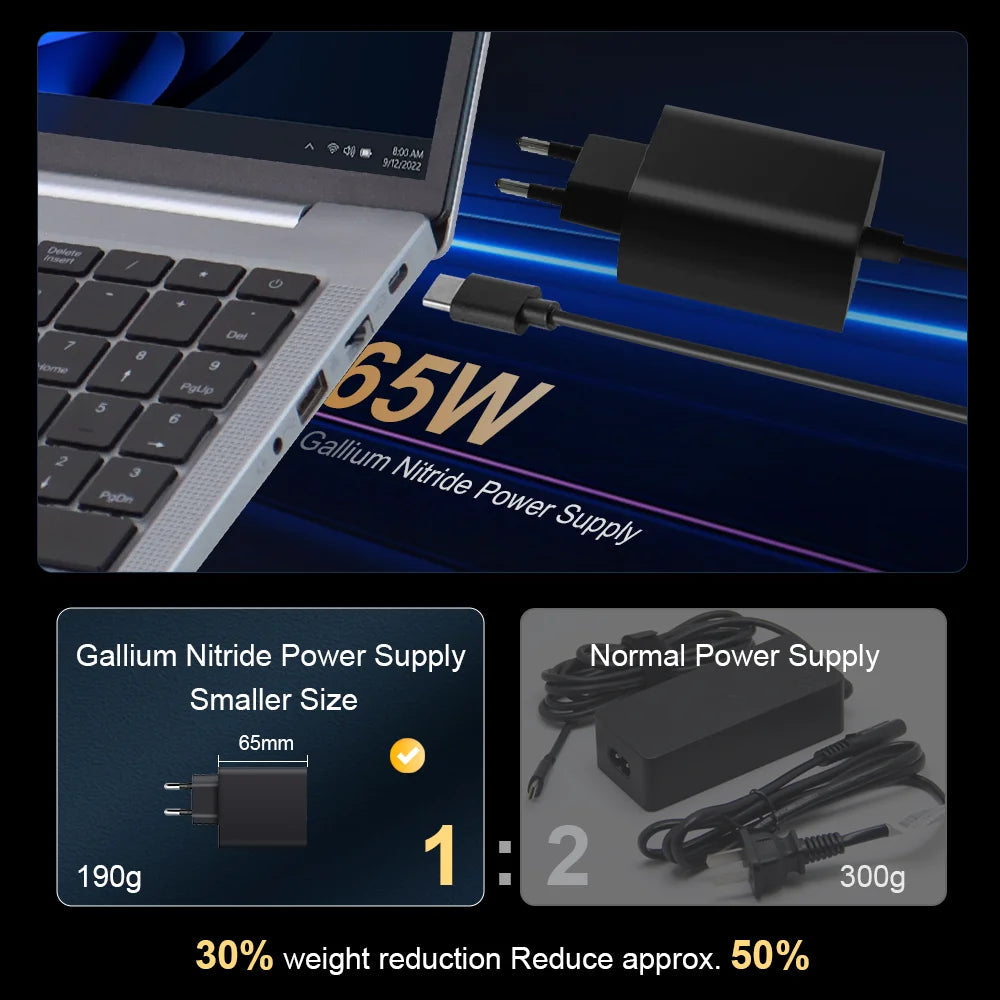

Power adaptor Input: 100~240V AC, 50-60Hz/Output: 19V/3.42A,65W

Weight:539g

Power plug:EU plug（Can be configured with US plugs according to country）

Battery last time:N/A

PD supported:N/A

Other devices

Camera:HD webcam，1.0MP

Cooling system

Number of fans:2pcs

Size and materials:Ø 60mm

copper sheet:2

copper sheet size:180*10 mm

air outlet position:bottom and up-bottem

Particularity

Charging other devices after power off Charging(Power ON): Red on

Charging(Power Off): Red on

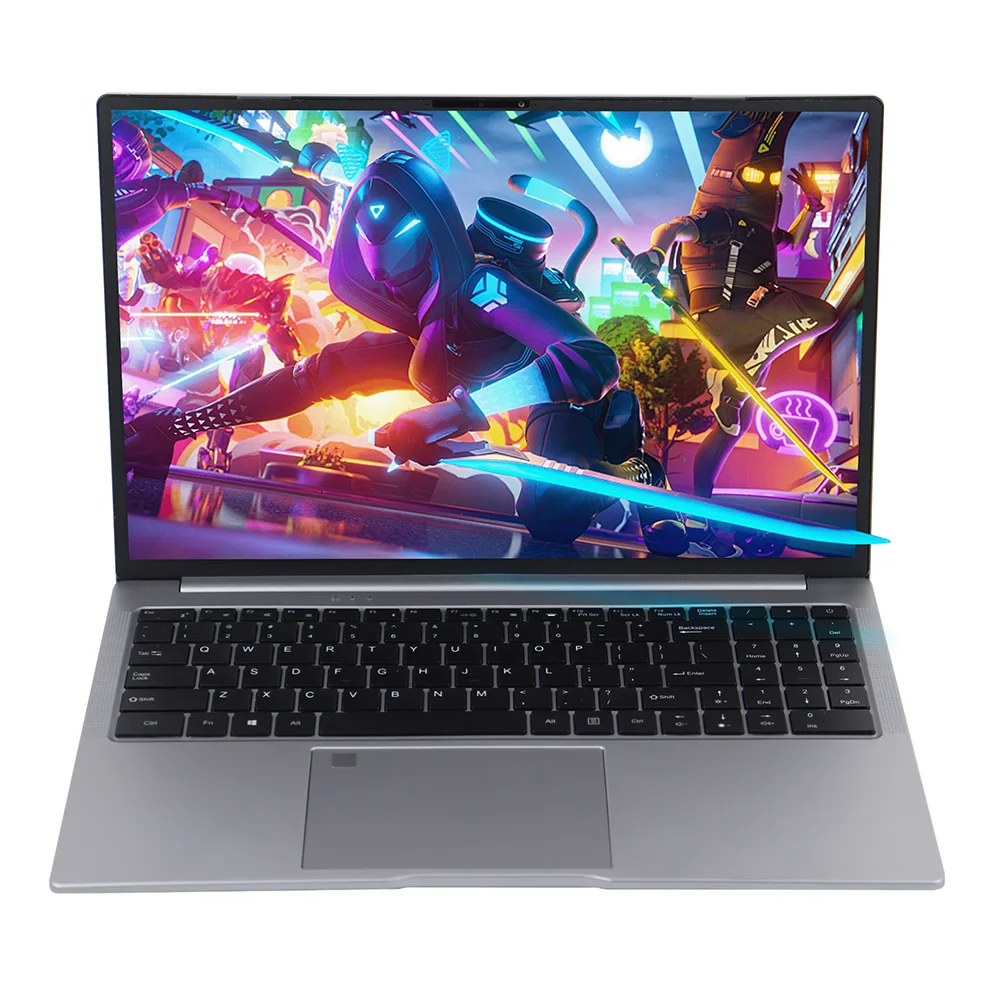

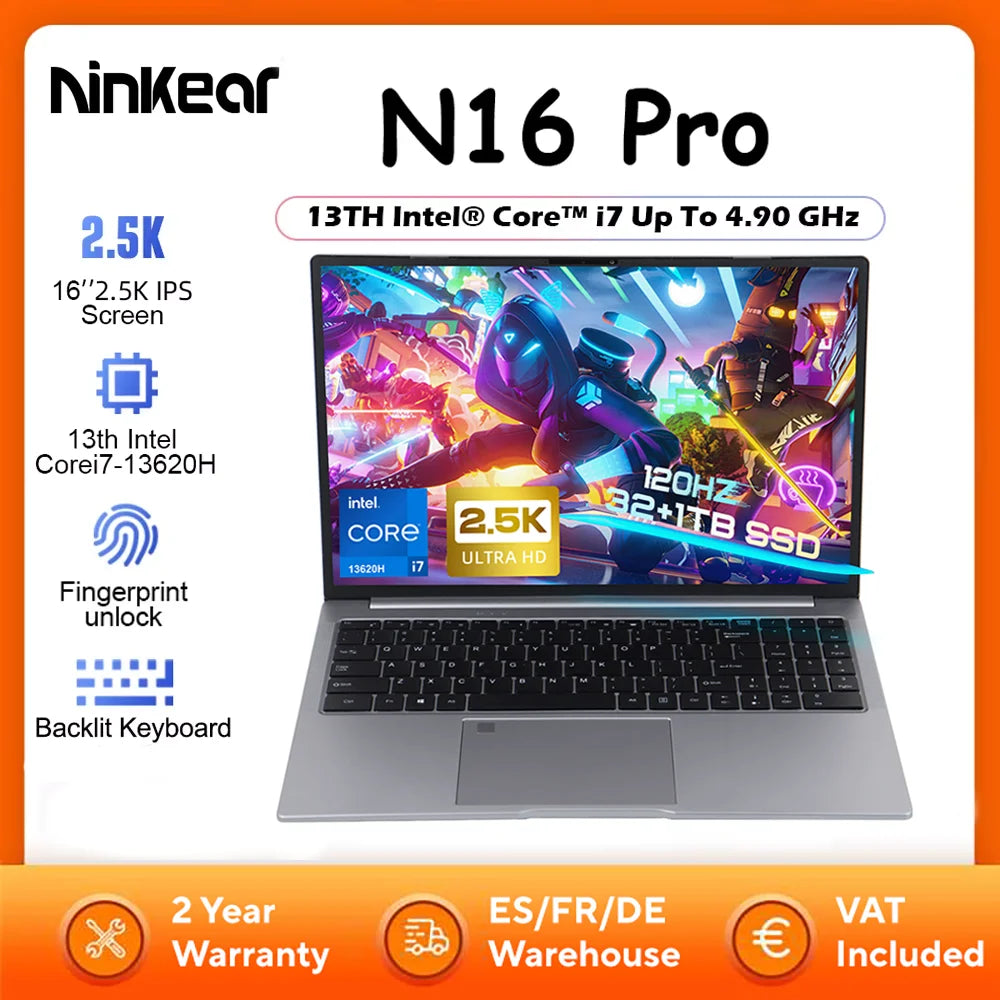

NinKear N16 Pro

Energy Gathered Light And Fast

The 13TH Core i7

Features

• 13th Gen Intel Core™ i7-13620H Processor

• Intel® UHD Graphics

• 2.5K UltraSharp 16-inch IPS Display

• 32GB DDR4 Dual-Channel RAM + 1TB PCIe SSD

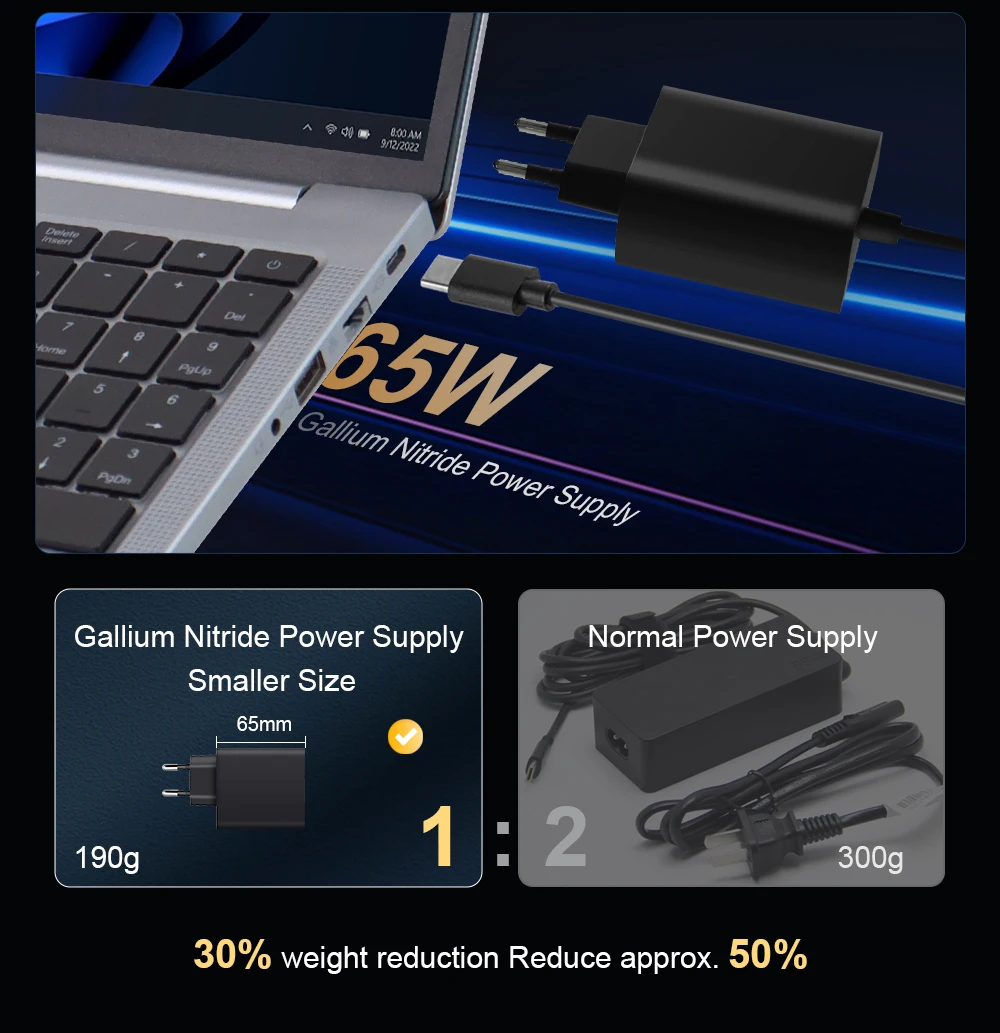

• 57.75Wh Large Battery, 65W Fast Charge

• Ultra-Portable Design

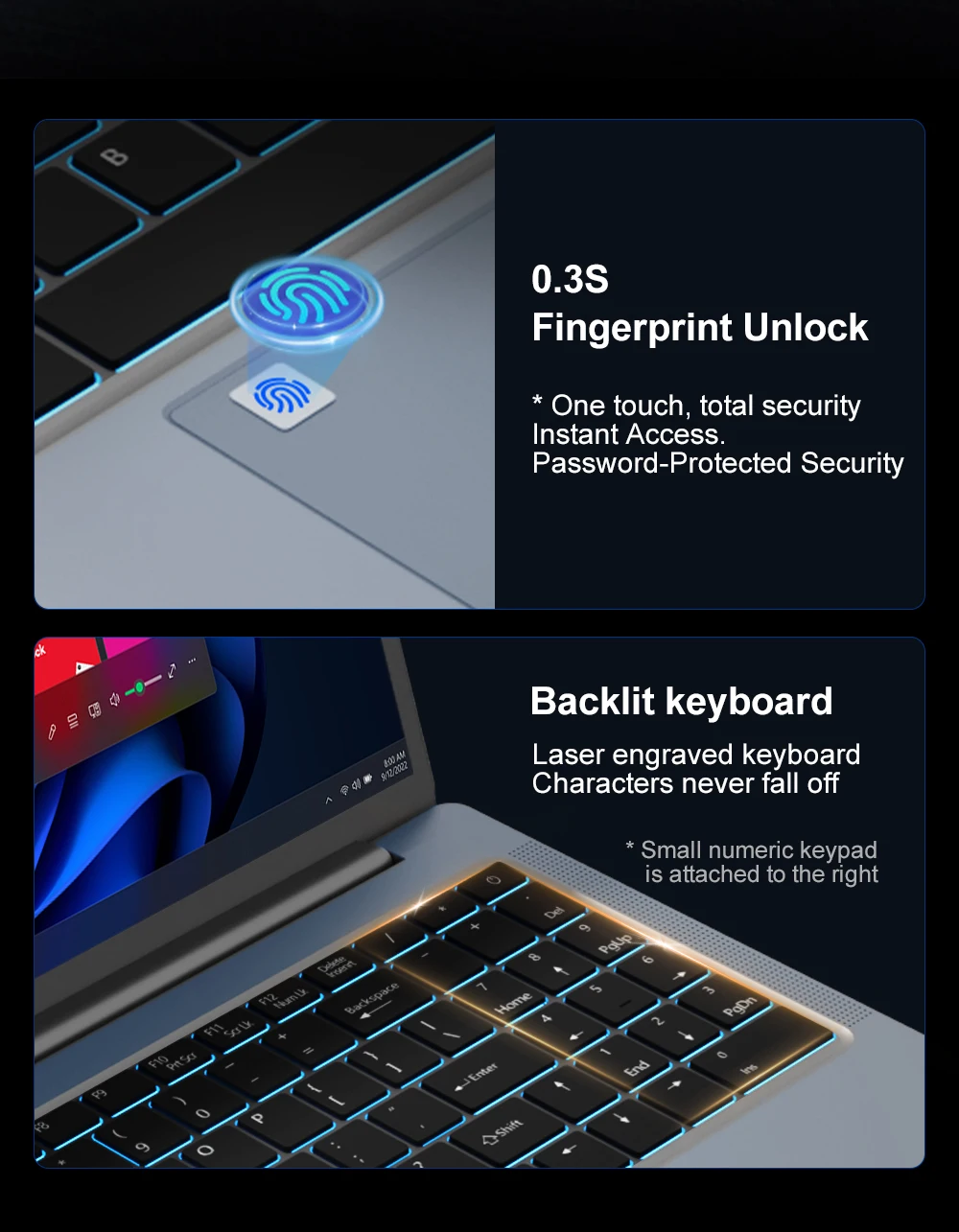

• 0.3s Fingerprint unlock

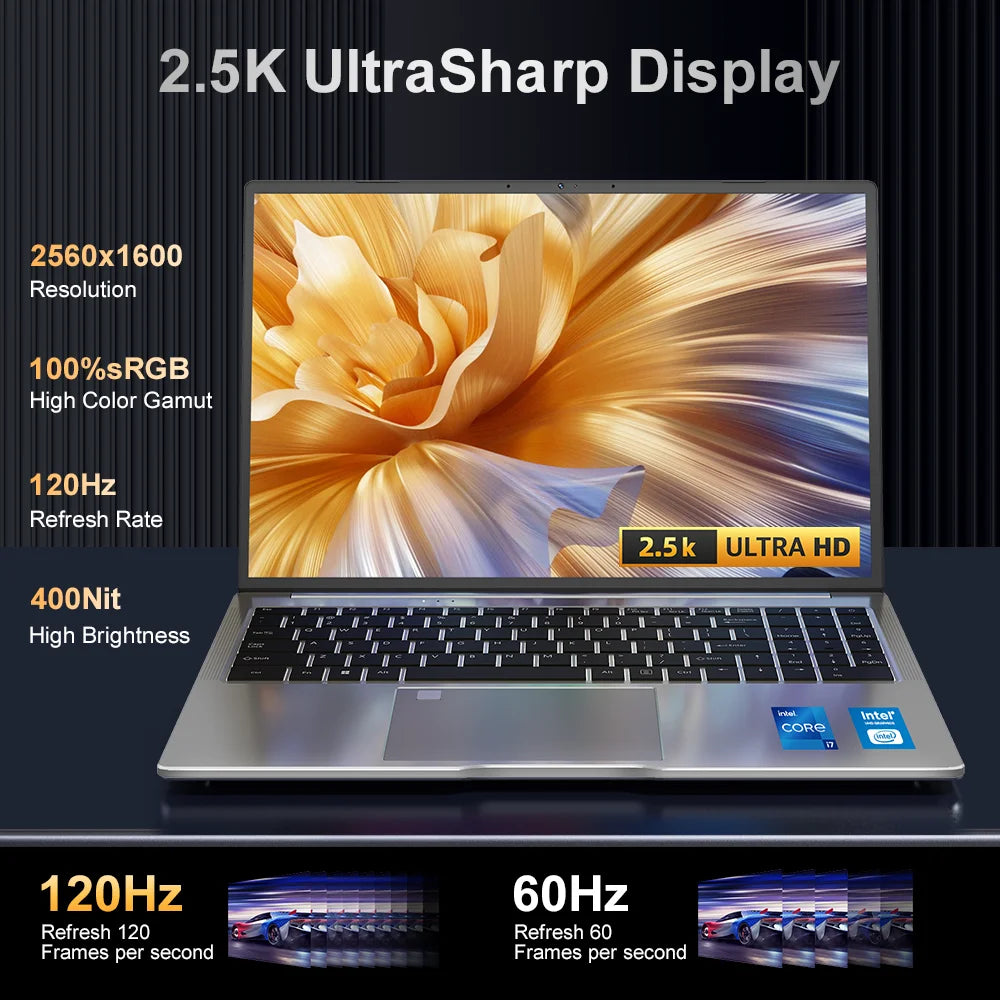

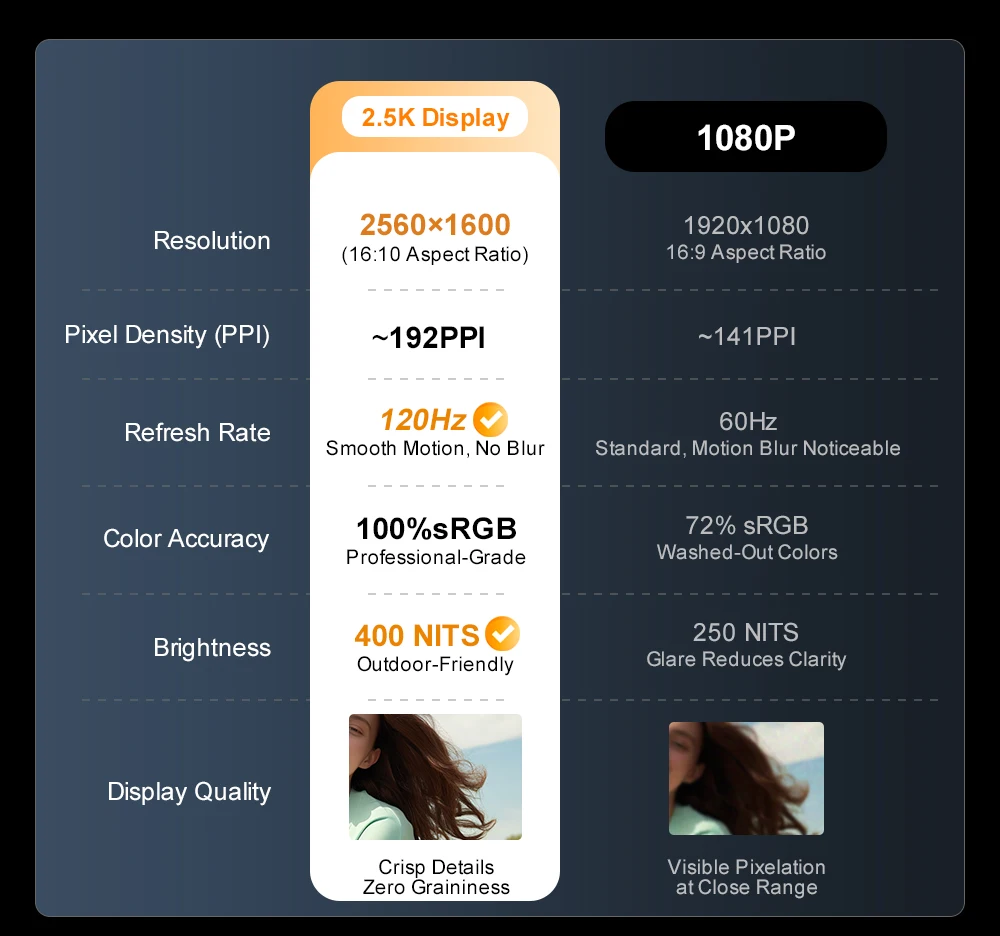

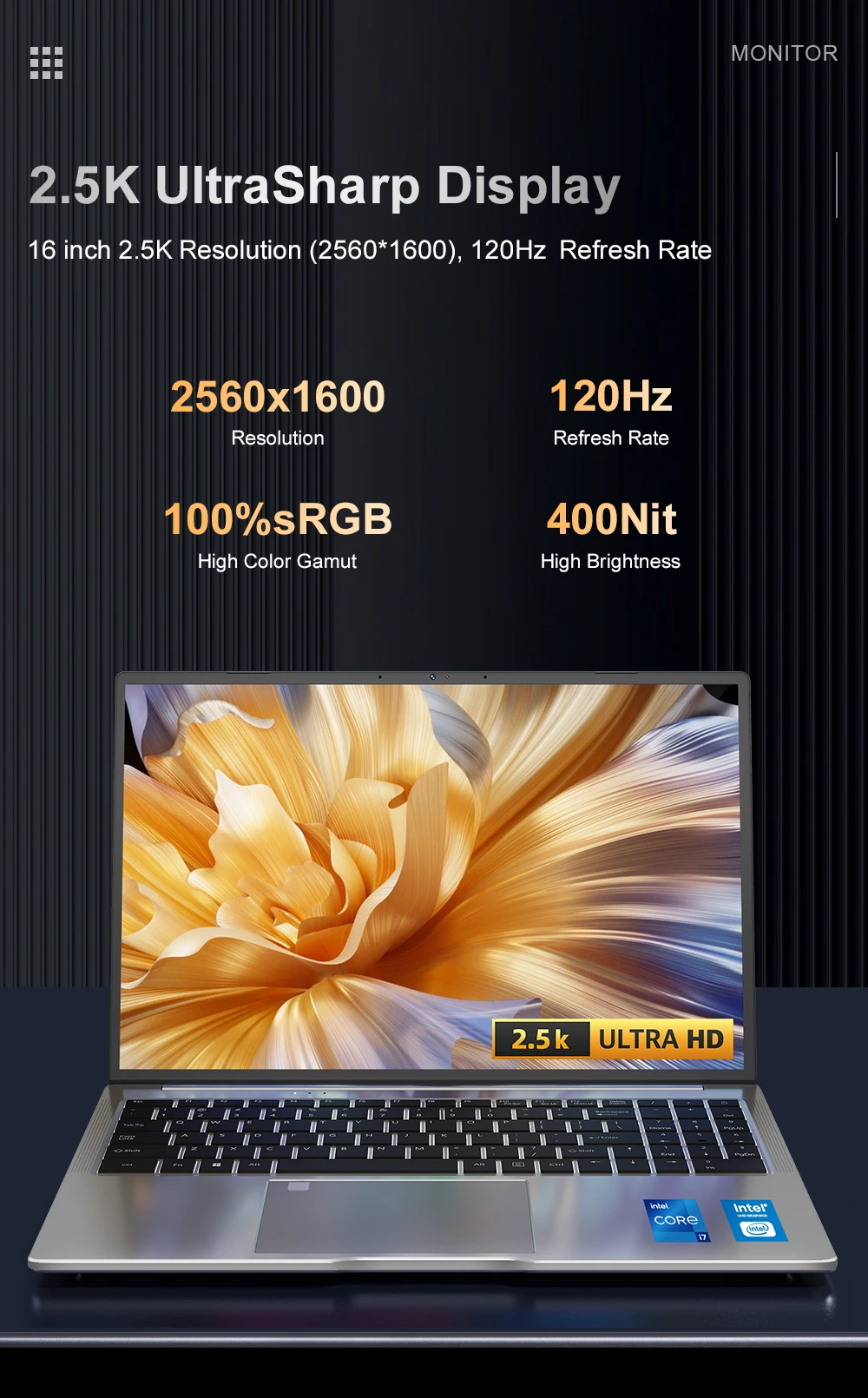

2.5K Ultra Sharp Display

16 inch 2.5K Resolution (2560*1600), 120Hz Refresh Rate

Intel Core i7-13620H

Intel core i7 Professional Performance

Equipped with 13th Gen Intel Core™ i7 Processor frequency up to 4.9GHz. N16 Pro is designed for provides all the horsepower you need. Incredible multitasking efficiency faster graphics and smoother gameplay are now in one.

Intel UHD Graphics for 13th Gen Intel Processors

High-performance Integrated Graphics for Slim Laptops and Mobile Devices

Dual Channel DDR4

Dual PCI-ESSD

32GB DDR4 High-frequency memory+1TB Solid-state drive, help you handle more ks at a faster speed, never freeze.

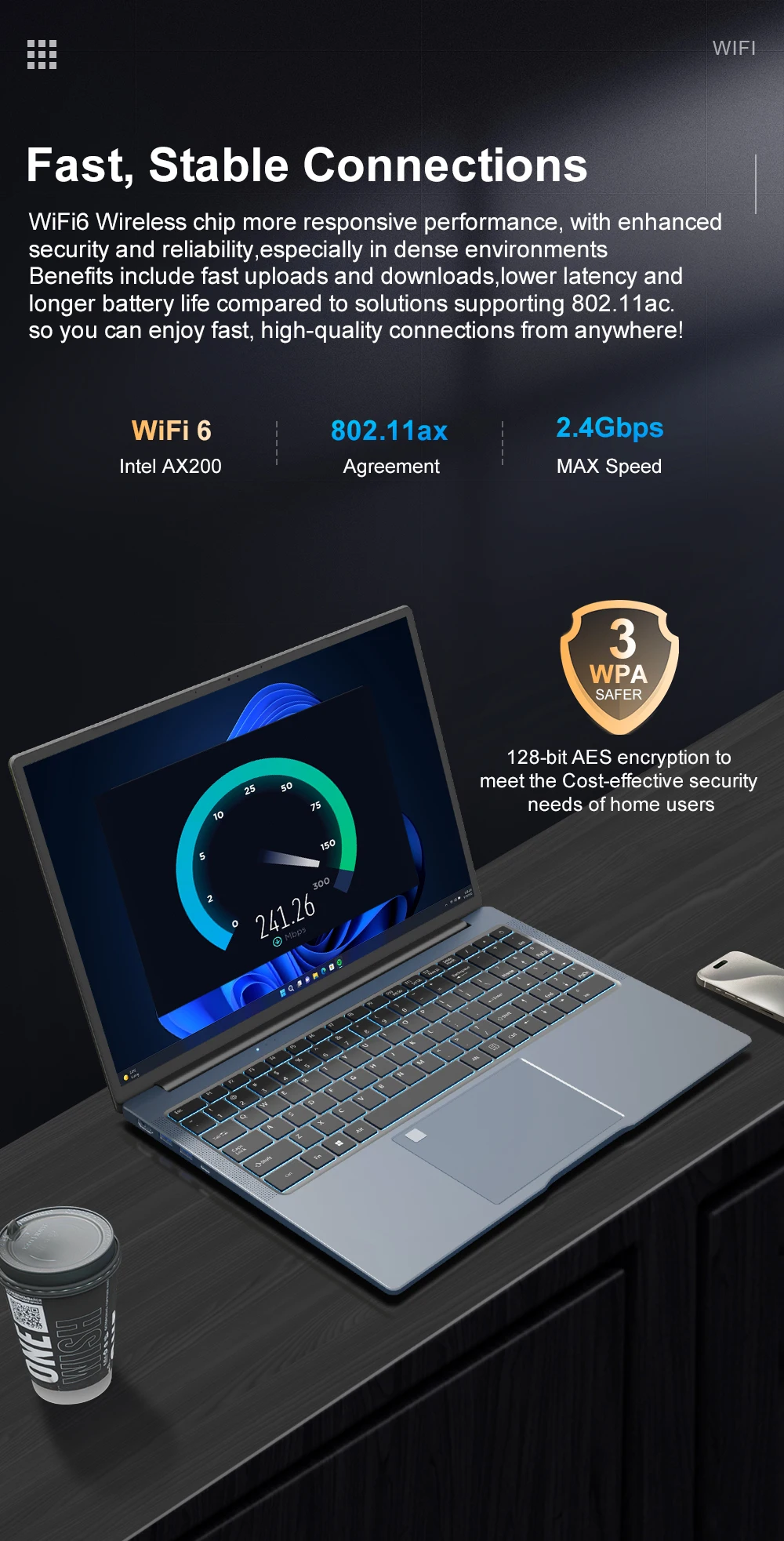

Fast, Stable Connections

WiFi6 Wireless chip more responsive performance, with enhanced security and reliability,especially in dense environments. Benefits include fast uploads and downloads,lower latency and longer battery life compared to solutions supporting 802.11ac. So you can enjoy fast, high-quality connections from anywhere!

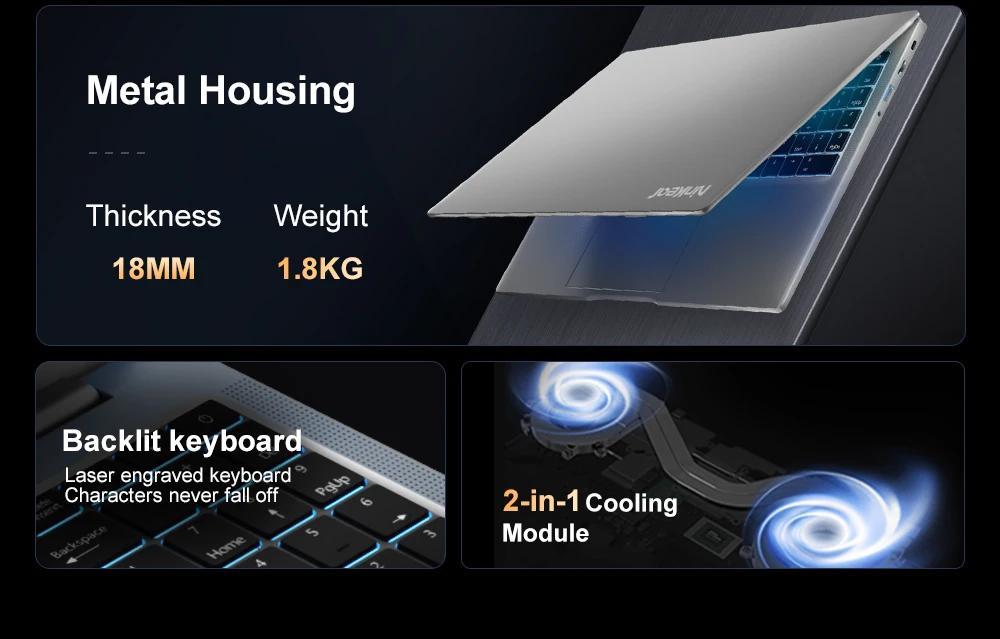

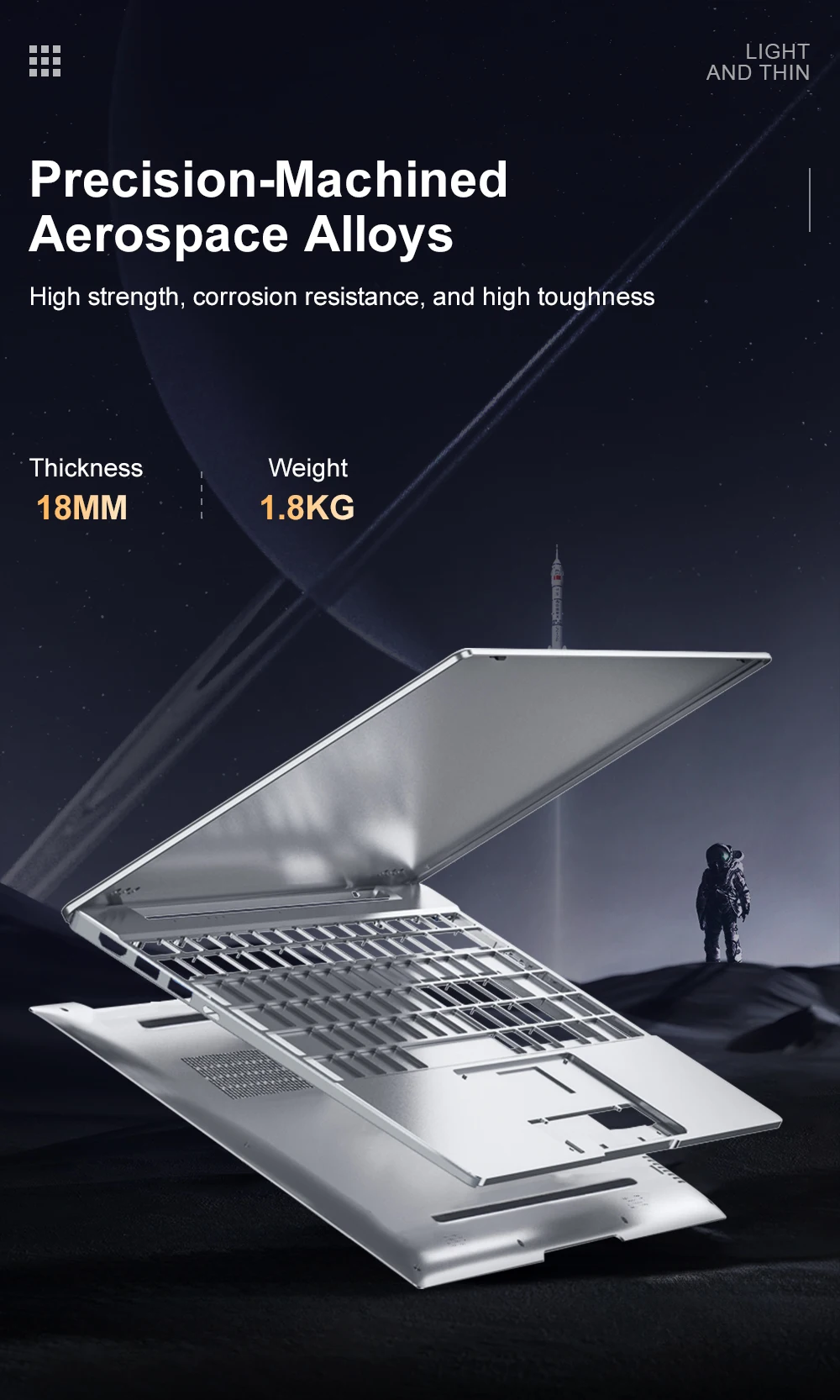

High strength, corrosion resistance, and high toughnessCharge once and use it for a whole day

Lightweight design with high energy density I stable performance

for multitaskingDual Cooling Solution

High-purity copper tube, the heat conduction efficiency is more than 60% higher than that of aluminum material,Heat dissipation. Efficiency increased by 40%, Noise reduction by 25%.
