REX C100 Digital PID Temperature Controller REX-C100 thermostat 0-400℃ K Type Input 40DA SSR Relay 0-40A Heatsink VaneAims

1 6

Techelectronicx

$70.60 USD

~~$0.00 USD~~ $70.60 USD

Sale Sold out

Shipping calculated at checkout.

Color 1 set without base 1 set with base 1m K type M6 Sensor BASE 10A-40A Relay-universal SSR-universal SSR-40DA Relay-single input SSR-single input

Quantity

SPECIFICATIONS

Brand Name: VaneAims

Cable Length: 1m

Certification: None

Choice: yes

Display Size: 2.0 - 3.9 Inches

Display Type: Digital

Hign-concerned Chemical: None

Is Smart Device: No

Max Measuring Temperature: 120°C & Above

Measure Type: K

Model Number: FXB

Origin: Mainland China

Power Type: None

SSR: 40A

Screw: M6*1

Style: Embedded

Theory: Temperature Controller

Type: K

Use: Industrial

semi_Choice: yes

Model number	REX-C series
Accuracy	±0.5% of full scale
Supply voltage	85-265Vac, 50/60 Hz
Input types-Thermocouple	K,J,E, Default K 0-400℃
Alarm quantity	1pcs
Output types	Electromagnetic relay / SSR (Pls choose the right output when ordering)
Power consumption	Less than 10 VA
Control method	PID Control (with auto-tuning) or Self-tuning, or ON/OFF
Temperature Mesurement Scope	0 to 999 ℃, default factory setting K02 input - 0 to 400 ℃ (adjustable)
Operating temperature	0 to 50 ℃ (32 to 122 ℉)
Operating humidity	30-85% RH max, non-condensing
Alias name	REX-C pid temperature controller, intelligent temperature controller

Product introduction:

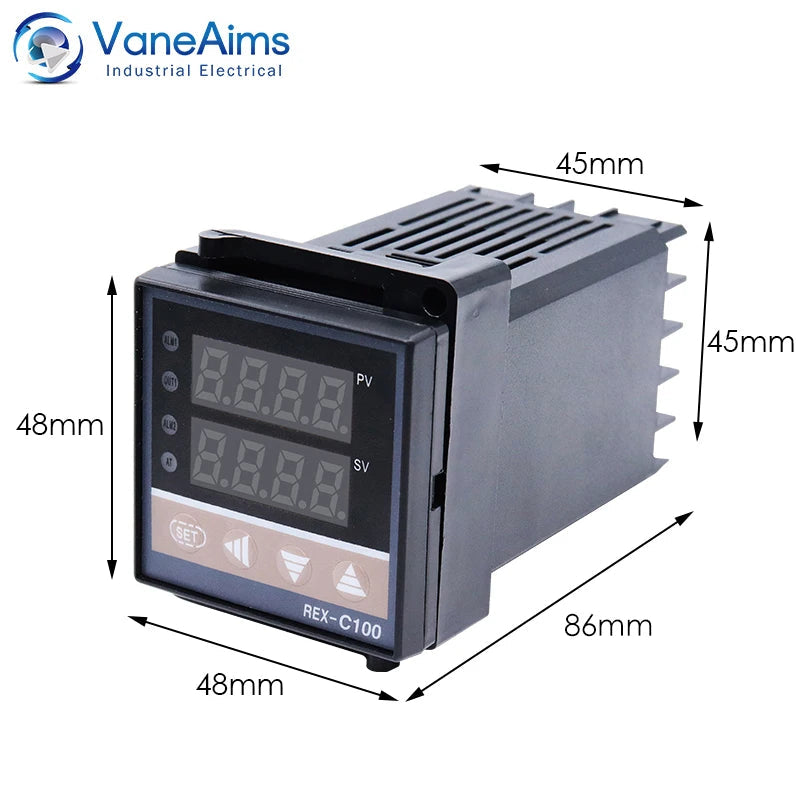

1. rex-c100 thermostat: 0-999 ℃ measurement scope, default factory set is 0-400 ℃ K type input, you can adjust input type according to user manual.

[Purchase Instructions: We sell 4 types of temperature controllers corresponding to different input and output types, so please purchase according to your needs. Single input only supports the connection of K-type, J-type and E-type thermocouples.Only universal input can support connecting PT100.]

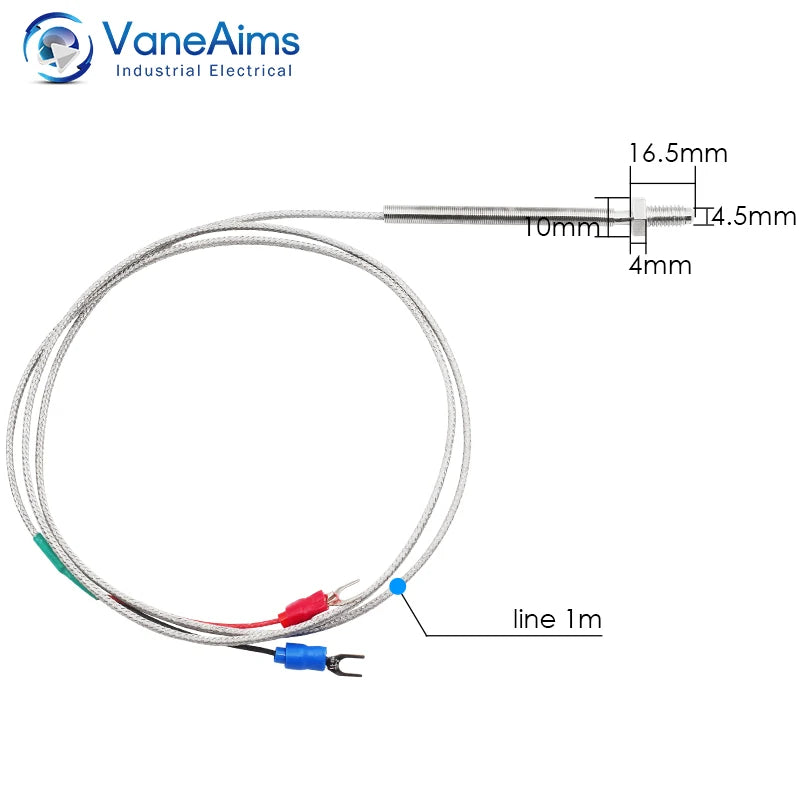

2. 1m k type M6 sensor: M6 screw type, support 0-600℃.

3. SSR-40DA: Control mode dc-ac, 3-32v/dc control voltage, 24-480v/ac load voltage, 40A output current, 5-20mA control current.

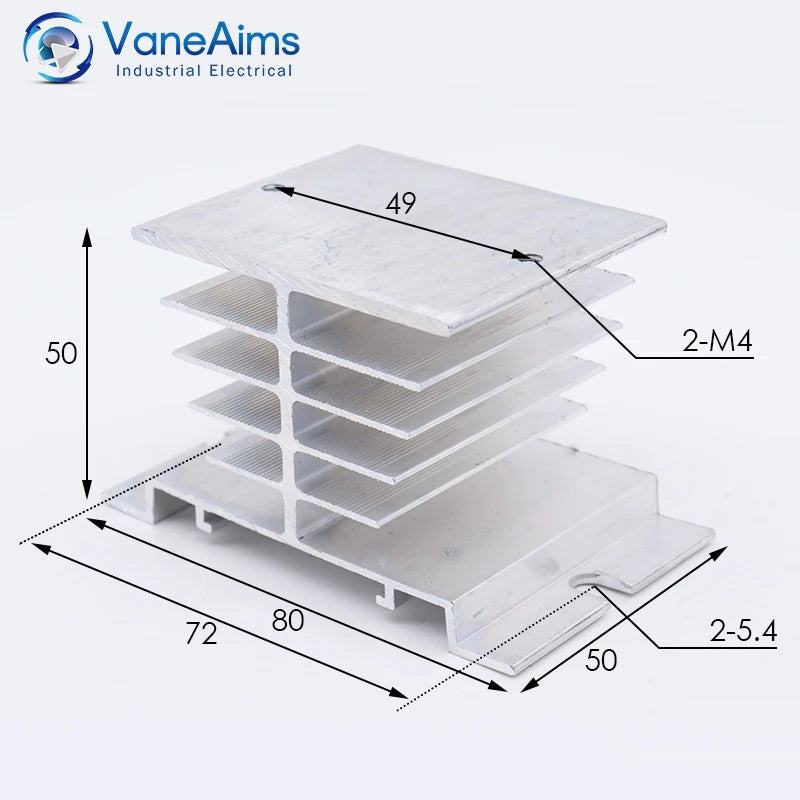

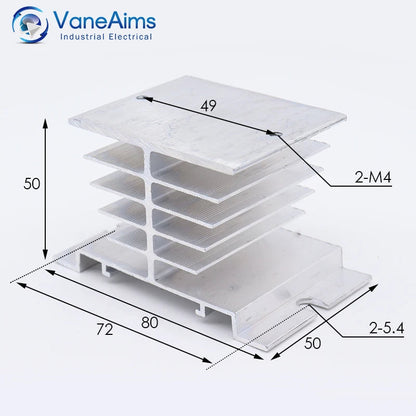

4. Base 10-40A: can be used for 10-40A ssr. Due to the high heat of solid-state relay, when the load current is higher than 10A, radiators must be used.

Packing List:

Note: In this link we sell nine different kits. Each kit contains different contents with corresponding pictures. We will send you what is included in the picture you select. We hope you do not misunderstand.

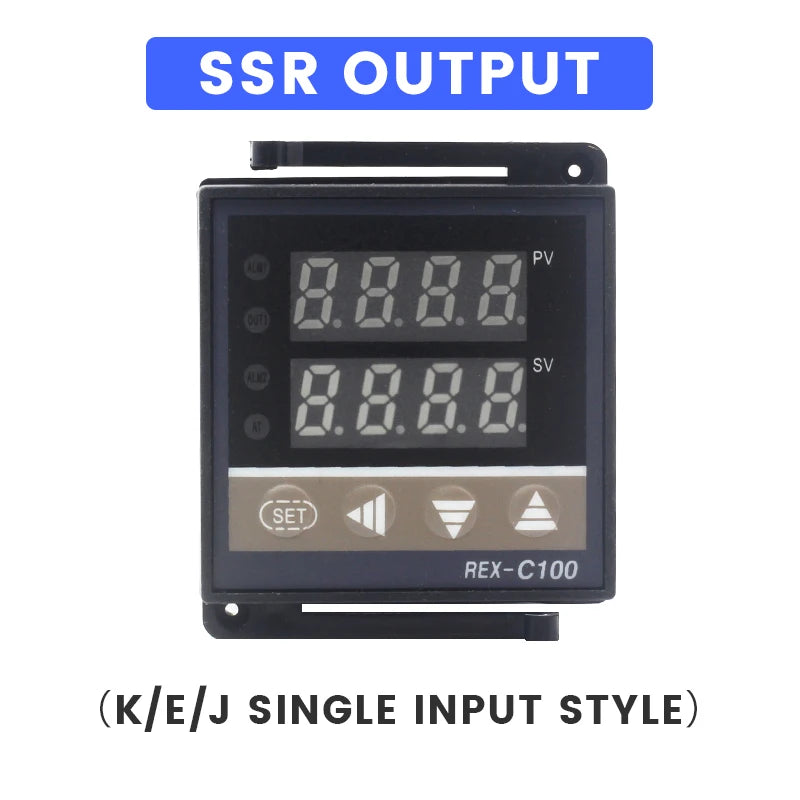

SSR-single input------ includes only a thermostat, not whole kit.

BASE 10A-40A----- includes only a radiator base.

1m K type M6 sensor ----- includes only a K type screw thermocouple sensor.

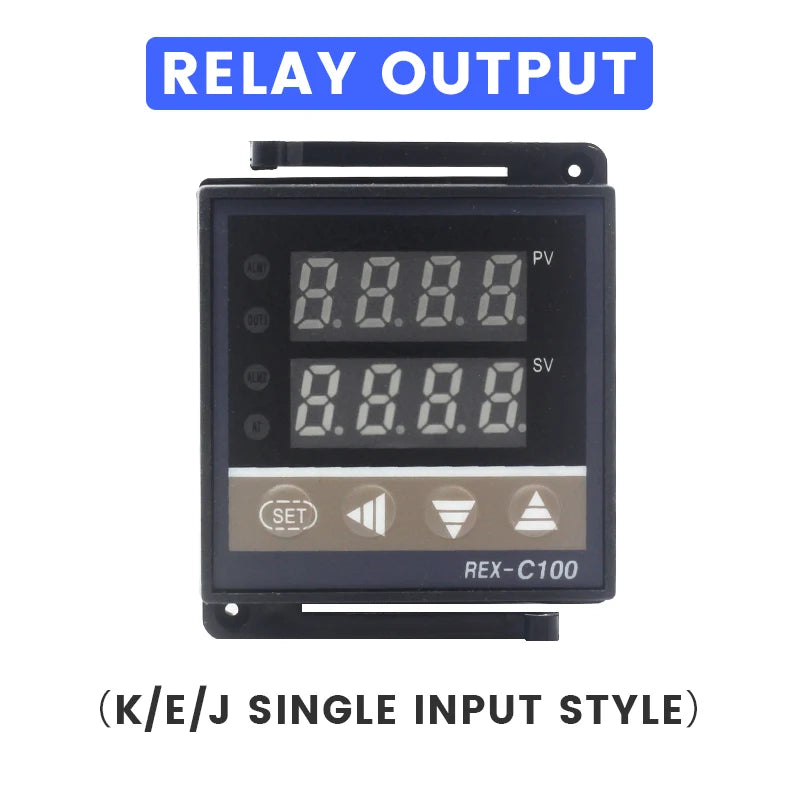

Relay-single input----- includes only a thermostat, not whole kit.

SSR-40DA------ includes only a SSR 40DA solid state relay.

SSR- universal----- includes only a thermostat, not whole kit.

Relay-universal----- includes only a thermostat, not whole kit.

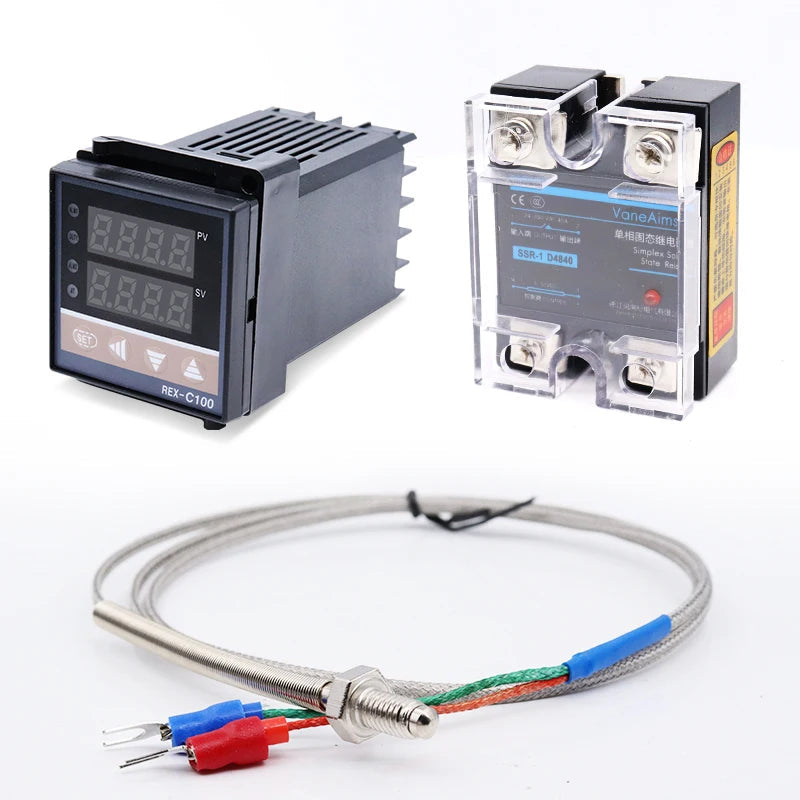

1 set without base----- includes a thermostat + a SSR 40DA relay + a 1m K type M6 sensor, without radiator.

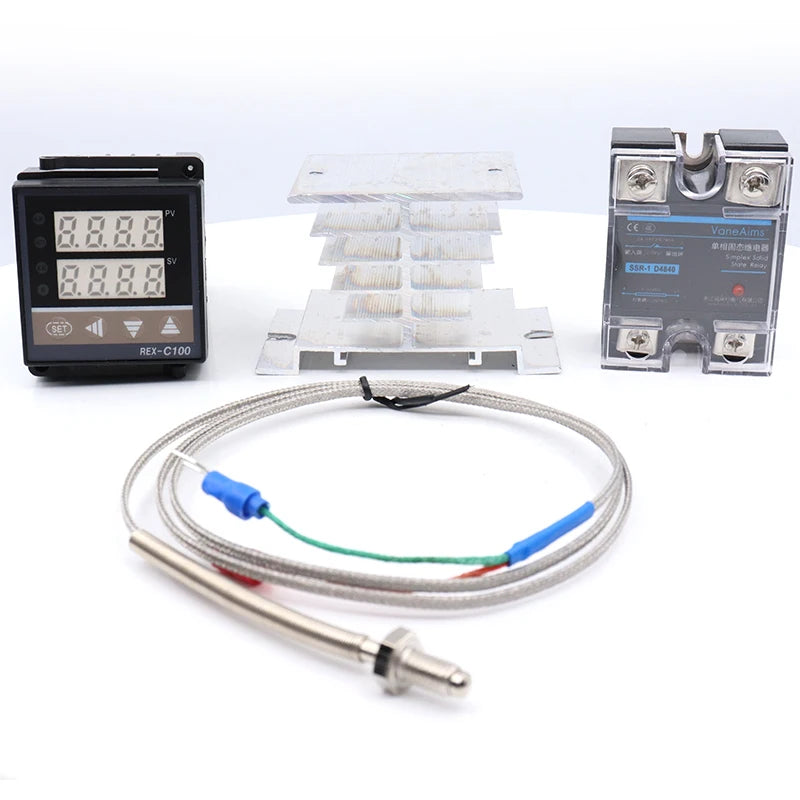

1 set with base----- includes a thermostat + a SSR 40DA relay + a 1m K type M6 sensor + a radiator.
